Graphene Oxide, 2-5 Layer, SA: 420 m2/gr
Graphene oxide (GO) is produced by oxidizing graphite using strong oxidizers, resulting in a compound composed of carbon, oxygen, and hydrogen in variable ratios. The structure and properties of graphene oxide depend on the specific synthesis method and degree of oxidation. Despite these variations, GO retains the layered structure of the original graphite.
Key Characteristics:
- Number of Layers: 2-5 layers
- Surface Area: 420 m²/g
Advantages of Graphene Oxide (GO):
Graphene oxide has a significant advantage over other 2D materials, such as graphene, due to its ability to disperse easily in solutions, allowing for processing at high concentrations. This property makes GO suitable for various applications, including:
- Optical coatings
- Transparent conductors
- Thin-film batteries
- Chemical-resistant coatings
- Water purification
- And many other advanced uses.
Technical Properties of Graphene Oxide
Purity 99.8% Average Number of Graphene Layers Few Layer Graphene Oxide Average Diameter (µm) 4.5 Surface Area (m2/gm) ≥ 420 Carbon Content (%C) 60 – 80 Oxygen Content (%O) 10 – 30 Hydrogen Content (%H) ≤ 2.00 Nitrogen Content (%N) ≤ 0.50 Color Dark Brown

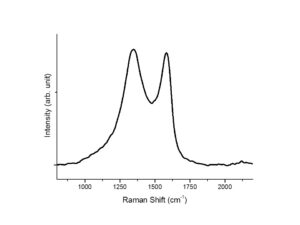

Graphene Oxide Raman Image
Applications of Graphene Oxide
- Composite
- Thermal management and heat spreading
- Graphene-polymer composite materials
- Graphene Oxide paper
- Transparent and conductive graphene oxide coatings
- Solar cells
- Supercapacitors graphene oxide
- Low permeability materials
- High-Barrier packaging
- Electro-static Dissipation Graphene Oxide (ESD) films
- Support for metallic catalysts
- Chemical-bio graphene oxide sensors
- Multifunctional materials based on Graphene
- Graphene Research
SEM Images of Graphene Oxide
| Measurement (gr) | 1 gram, 5 grams, 25 grams |
|---|
